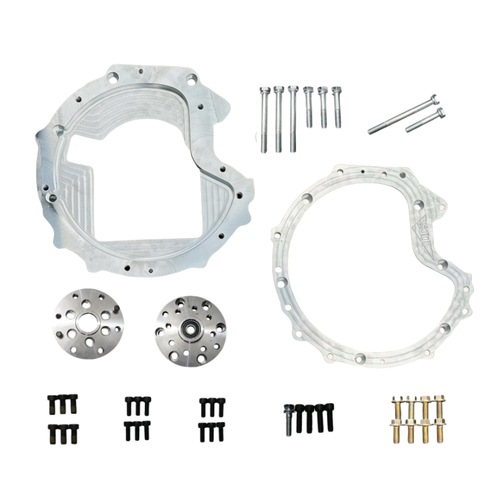

This adapter plate mates the Toyota® R150 transmission to a Volkswagen® 1.9L or 2.0L TDI® engine (see below for engine names).
Includes:
- Steel crankshaft spacer
- Dowel pins
- Starter spacer
- Hardware to bold the adapter plate and crankshaft spacer to the engine
Designed to be used with a Toyota starter and placement is changed to the passenger side of the engine. Does not require drilling or balancing of the flywheel.
When doing a Volkswagen TDI to Toyota R150 project, a starter spacer plate may be needed: "Rear End No. 1" for Toyota R150 Transmissions. We offer this - see DCS SKU 2359.
This adapter plate kit is intended to be used on R150 manual transmissions that would have been paired with the 3.4L engine 5VZ-FE. The R150 is known to have a short and a long input shaft. This kit is designed for the longer input shaft length relative to the bell housing mounting surface.
This adapter plate accepts the following TDI engines codes:
- AHU
- ALH
- BEW
- BRM
- BHW
- CBEA
- CJAA
For North American VW TDI engines, these are the production years most commonly associated with each engine code:
|
Engine Code |
Displacement |
Years |
|
AHU |
1.9L TDI (VE) |
1996-1999 |
|
ALH |
1.9L TDI (VE) |
1998-2003 in North America (found in 1999-2003 Golf/Jetta and 1998-2003 New Beetle) |
|
BEW |
1.9L TDI (PD) |
2004-2006 |
|
BRM |
1.9L TDI (PD) |
2005.5-2006 |
|
BHW |
2.0L TDI (PD) |
2004-2005 (Passat only) |
|
CBEA |
2.0L TDI (Common Rail) |
2009-2010 |
|
CJAA |
2.0L TDI (Common Rail) |
2010-2014 |
VE = distributor injection pump
PD = "pump-nozzle" or "unit injector”
- Adaptable Transmission:
- Toyota® R150 5-Speed
- Ship Separately:
- No
- Product can be split into multiple boxes:
- No
- Must Ship Freight:
- No
- ShipperHQ Dimensional Rule Group:
- Adapter Plate With Flex
- Dimension Height:
- 3.7500
- Dimension Length:
- 15.0000
- Ship Separately:
- Yes
- Dimension Width:
- 14.7500
- Is Featured:
- No
- Adaptable Engine:
- VW® 1.9L TDI®
- Adaptable Engine:
- VW® 2.0L TDI®
